> > > Contact Us Today < < <Protect your team with the most effective line of extra-oral suction devices available.
Control aerosols at their source - without sacrificing quality or ease of care.
By creating a broad negative pressure zone directly above the oral cavity, the Safe-T-Shield provides better evacuation than "bell-mouth" suction devices. The curved manifold design has a volume over 5 times the average adult exhalation – more than enough to contain a sneeze or cough.
The large, clear Shield is positioned between your team and droplet & bioburden ejection created by dental treatment – while still allowing unrestricted access to the treatment zone.

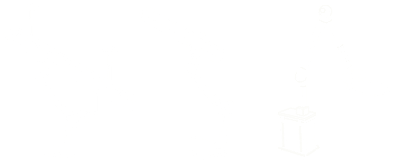

A wide variety of Installed Safe-T-Shield options are available.
While the mobile Safe-T-Shield allows immediate use, installed versions take the technology to even higher levels of protection, control and ease-of-use. Installed Safe-T-Shields provide higher levels of filtration, exhaust options, and reduced maintenance. They deploy easily, and reduce operatory clutter.
Why consider an Installed Safe-T-Shield?
The Installed Difference
Multiple Installed Safe-T-Shields may be ducted to a dedicated, central vacuum. Captured aerosols are passed through enhanced filters and returned to your HVAC system, or exhausted outside the facility. In either case, the aerosols are removed from the operatory.
Capable of HEPA 14 Filtration
For central HVAC filtration, the advantage is POWER. These systems can handle a much higher filtration rate than mobile units, which typically top out at H13. While that level provides significant protection, H14 is rated at 99.995% capture of COVID sized viral particles. The power advantage also allows installed units to provide greater suction - typically 150 cfm or higher.
Don't Filter - Exhaust!
As an alternative to filtering, Installed Safe-T-Shields can be set up to exhaust the captured aerosols outside the practice altogether.
Negative Pressure
Whether you filter or exhaust, an installed Safe-T-Shield can be used to create a negative airflow in many operatories. This approach is OSHA's current recommendation for infection control in dental operatories. (jump to the OSHA doc near the bottom... Click Here.)
 ?>)







Safe-T-ShieldTM Lumina

Safe-T-ShieldTM Lumina

Safe-T-ShieldTM Lumina

Safe-T-ShieldTM Lumina
The Protection of the industry's best Aerosol Control, combined with TWO exceptional Lighting Solutions.
The LUMINA is a comfortable, All-In-One solution that makes the treatment environment as safe as possible – while enhancing the patient experience.
The suspended LUMINA track provides the security of the Safe-T-Shield and the utility of our exceptional Intraoral light... and caps it all with an array of LED reflected general room-lighting.
Top-mounted dimmable LEDs reflect off the operatory ceiling, creating more even, glare-free lighting. This reduces eye strain for clinicians, and makes a much more relaxed environment for patients.
Standard Features
- Safe-T-Shield extraoral suction
- All LED lighting
- Dimmable general room lighting
- 7000-32000 lux intraoral light
- Tune-able wave-length
- 360° light-arm rotation
- Single-piece aluminum extrusion body
- Milled billet aluminum trolley
- Igus Energy Chain for reliable cable management
To retrofit your current practice, we will need to consult with your HVAC provider and advise on an installation plan (there is no charge for this consultation).

Safe-T-ShieldTM Lumina
Safe-T-ShieldTM Lumina
Safe-T-ShieldTM Lumina
Safe-T-ShieldTM Lumina
Lighting the way to a safer dental environment
 ?>)
Aerosol Control
Broader coverage at the source
Particle Barrier
Non-restrictive droplet protection
Complete Lighting Solution
Intraoral and reflected general lighting
Safe-T-Shield
Lumina Dimensions
ID | Description | Standard | Metric |
---|---|---|---|
A | 16in Safety Shield | 16in | 40.64 |
B | Length of elephant trunk (fully extended) | 10in | 25.4cm |
C | Length of lower arm section (after elephant trunk) | 15in | 38.1cm |
D | Length of upper arm section | 15in | 38.1cm |
E | Length of elbows (fully extended) | 14.25in | 36.2cm |
F | Length of Track | 96in | 243.84cm |
G | Length of arm for EP light | 22in | 55.88cm |
 ?>)

Safe-T-ShieldTM DuoTrac

Safe-T-ShieldTM DuoTrac

Safe-T-ShieldTM DuoTrac

Safe-T-ShieldTM DuoTrac
 ?>)
Aerosol Protection and Intraoral Lighting.
The DUOTRAC is the ideal solution when ceiling heights aren't suited to reflected lighting.
Mounted flush to the ceiling, the DUOTRAC features our industry leading extraoral suction, and our top-quality intraoral light.
- Safe-T-Shield – sliding aerosol control
- Touchless Introral track light
- Tuneable wave-length
- Reliable igus® cable manage

Safe-T-ShieldTM VacTrac

Safe-T-ShieldTM VacTrac

Safe-T-ShieldTM VacTrac

Safe-T-ShieldTM VacTrac
 ?>)
Extraoral Protection in a Short Track.
What if you don't want to replace an existing tracklight unit or you prefer loupes and don't need an intraoral light?
The VacTrac offers all the benefits of an installed Safe-T-Shield in a more compact track design. The VacTrac can be mounted directly above the patient, or along side an existing track.
- Safe-T-Shield – sliding aerosol control
- Full articulating suction arm
- 360° degree rotation
- Flexible mounting options

Safe-T-ShieldTM Pivot

Safe-T-ShieldTM Pivot

Safe-T-ShieldTM Pivot

Safe-T-ShieldTM Pivot
 ?>)
Simply the Best Aerosol Control... done Simply.
The Pivot features the same exceptional manifold and fully adjustable armature; it simply swaps the sliding track function with a straight drop.
Typically mounted off-center at the patient's head, the 360° swivel arm allows quick and effective positioning of the Shield.
- Fixed post Safe-T-Shield
- Full articulating suction arm
- 360° degree rotation

Preparing Workplaces for COVID-19
In many instances, an installed Safe-T-Shield can be utilized to create a negative airflow environment in the operatory.
This is the current recommendation for "some settings, such as for aerosol generating procedures."
(see pp. 12-12 of OSHA Publication 3990-03 2020, which can be found here: osha.gov/Publications/OSHA3990.pdf)
